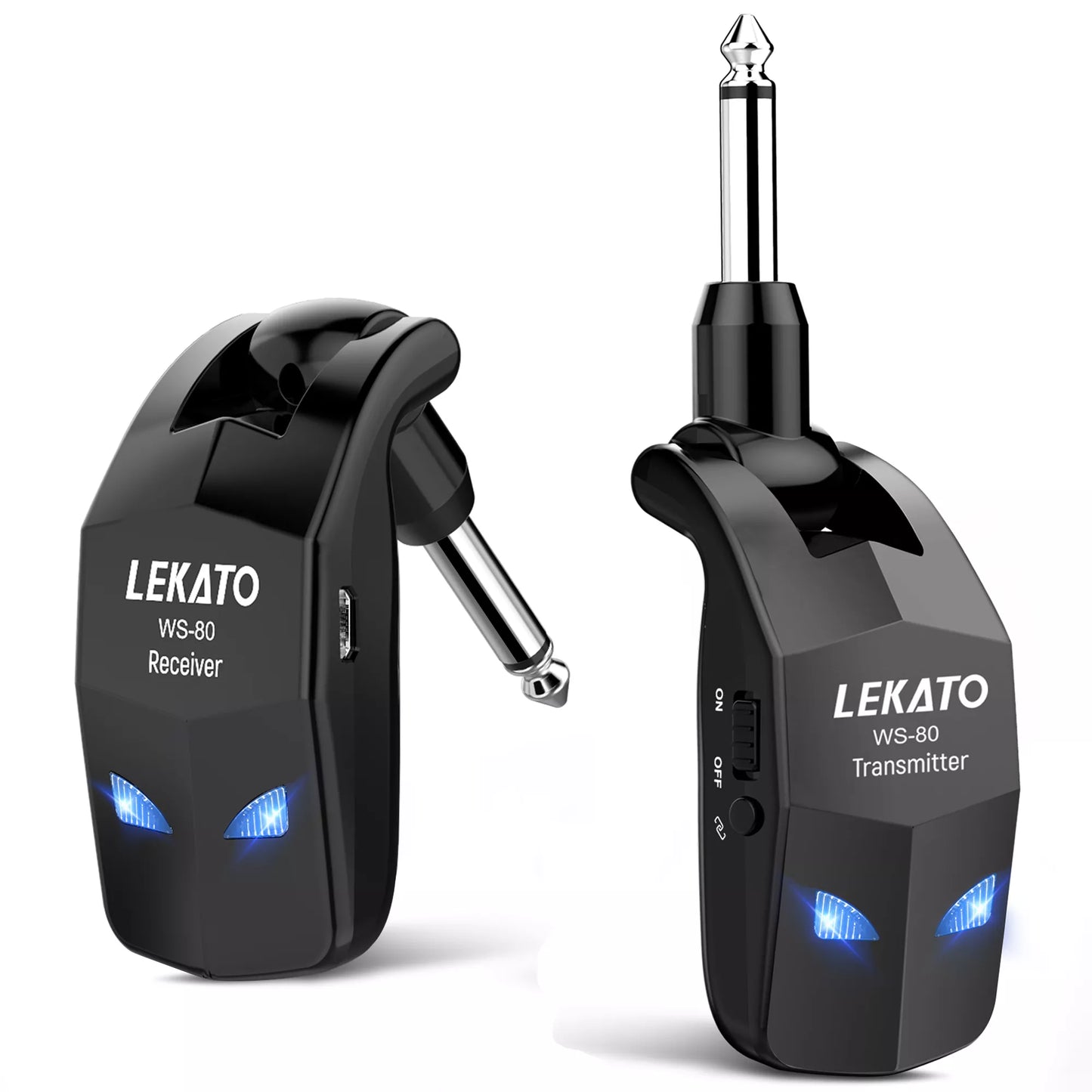

Lekato Wireless Guitar System 2.4Ghz Guitar Transmitter Receiver For Electric Guitar Wireless Transmitter Built-In Rechargeable
Lekato Wireless Guitar System 2.4Ghz Guitar Transmitter Receiver For Electric Guitar Wireless Transmitter Built-In Rechargeable
Couldn't load pickup availability
LEKATO has always been working hard to provide professional musical instrument parts to our customers, and our products come with a year guarantee, If you have any other issue after receiving our products, please email our service team. We will help solve the issue for your first time. Thank you for kindly understanding. The wireless guitar system design makes it very easy to use. Original sound transmission, anti-interference, and ultra-short delay. Giving you the best music sound. you can rest assured that the most subtle nuances with regard to your performance are captured and transmitted with the utmost fidelity.
Transmitter: Signal in, connects to your instruments, such as guitars, mussels, etc.
Receiver: signal out, connect to your instruments, such as Guitar Amp, Guitar Effects Pedal, Audio Mixer, etc.
Feature:
* About 100 feet transmitter for outdoors
* 220°rotatable head, available for most musical instruments
* Fit for all the electronic music instruments
* Support 4 sets of devices at the same time
* Easy to use, plug and play
Specifications:
Material: ABS plastic
Sample Range: 48KHz/16bit uncompressed digital transmission
Latency: < 5ms no lag or signal loss
USB port for charging
105 dB dynamic range
Frequency Response: 10-22KHz +-1dB
Distortion:<0.02%
Package includes:
1* Transmitter
1* Receiver
1* USB Cable
1* User Manual
How to use
1. Connect the transmitter to the guitar
JOYO JW-03, Is suitable for all electric guitars, including the Stratocaster style electric guitar with vibrato system.
2. Connect the receiver to the amplifier
Switch on the receiver, if the blue indicator is on, it indicates the receiver and transmitter are paired. If the blue indicator is flickering, it indicates they're not paired, and that might be due to strong signal interference exceeding transmission distance or the transmitter doesn't work.
Features:
1. 48K/16bit audio resolution
2. Delay time:<5mS
3. Transmission distance>20m
4. Frequency response:10Hz-22KHz+-1dB
5. Distortion:<0.02%(@1KHz-10dBFS)
6. Wireless frequency band:2.4GHz ISM frequency band
7. Anti-interference method: Frequency hopping
8. Quantity of signal channel: 12, in 4 channel banks
9. Built-in lithium battery: Over 8 hours of battery life once fully charged
10. Lithium battery: lasts for approximately 4-5 hours after a charge of 2 hours
Specifications:
Battery: Rechargeable lithium battery 3.7V/600mAh
Frequency response: 10Hz-22KHz
Wireless frequency band: 2.4GHz ISM frequency band
Volume: 78*37*30mm (when being folded)
Purchase Note:
1. The system divides the working frequency into 4 channel banks so as to avoid mutual interference. Each pair occupies a channel bank while in use.
2. Double click the pairing button, you can switch the channel bank once. Meanwhile, the yellow indicator's flicker times indicate the current channel banks.
Package List:
1* JOYO JW-03 guitar wireless system
1* USB cable
1* owner's manual
